5DT DATAGLOVES系列数据手套，用于VR、AR开发应用可用于实现各种自定义手势。5DT数据手套的设计符合现代人体运动学原理，佩带舒适，使用方便。有适合多平台的设备驱动，拥有12位的数据精度及较高的数据刷新率，适合各类实时仿真及动画。
Data Glove 5 Ultra/Data Glove 14 Ultra
The 5DT Data Glove Ultra is designed to satisfy the stringent requirements of modern Motion Capture and Animation Professionals. It offers comfort, ease of use, a small form factor and multiple application drivers. The high data quality, low cross-correlation and high data rate make it ideal for realistic realtime animation.
The 5DT Data Glove 5 Ultra measures finger flexure (1 sensor per finger) of the user’s hand.
The 5DT Data Glove 14 Ultra measures finger flexure (2 sensors per finger) as well as the abduction between fingers.
The system interfaces with the computer via a USB cable. A Serial Port (RS 232 - platform independent) option is availible through the 5DT Data Glove Ultra Serial Interface Kit. It features 8-bit flexure resolution, extreme comfort, low drift and an open architecture. The 5DT Data Glove Ultra Wireless Kit interfaces with the computer via Bluetooth technology (up to 20m distance) for high speed connectivity for up to 8 hours on a single battery. Right- and left-handed models are available. One size fits many (stretch lycra).
5DT数据手套Ultra是设计来满足现代动作捕捉和动画专业人士的严格要求。它提供了舒适性、易用性、较小的外形和多个应用程序驱动程序。高数据质量，低互相关和高数据率使其成为理想的现实实时动画。 5DT数据手套5 Ultra测量用户手的手指弯曲度(每个手指个传感器)。 5DT数据手套14 Ultra测量手指弯曲(每个手指2个传感器)以及手指间的外展。 系统通过USB线与计算机连接。个串口(rs232 -平台无关)选项是可通过5DT数据手套超串口接口工具包。它具有8位柔性分辨率，很端舒适，低漂移和个开放的架构。5DT Data Glove Ultra无线工具包通过蓝牙技术与计算机进行接口(*远可达20米距离)，可在单块电池上进行长达8小时的高速连接。右撇子和左撇子都有。种尺寸适合多种款式(弹力莱卡)。
Features:
Data Glove 5 Ultra MRI/Data Glove 14 Ultra MRI（支持核磁环境的手套版本）

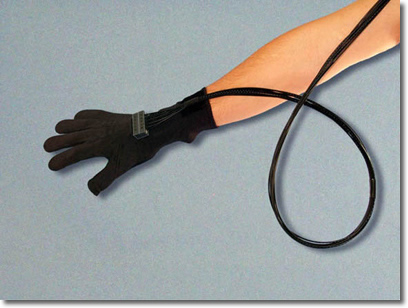

The 5DT Data Glove MRI Series is optimized for use in Magnetic Resonance Imaging (MRI) environments. The glove itself does not contain any magnetic parts. It communicates with a control box (5-7m away) via optical fiber. The control box interfaces with the computer via a cable to the serial port (RS 232 - platform independent). 5-Sensor and 14-sensor models are available. Right- and left-handed models are available. One size fits many (stretch lycra).
Data Glove Ultra MRI
The MRI glove series offers the same USB interface functionality as the Data Glove Ultra Series, but with an 8m long fibre bundle between the glove control board. This configuration is suitable for MRI environments where no metal parts are desired near the user.
Features
5DT Ultra Wireless Kit (for 2 gloves. Note: gloves not included) （5DT无线开发套件）

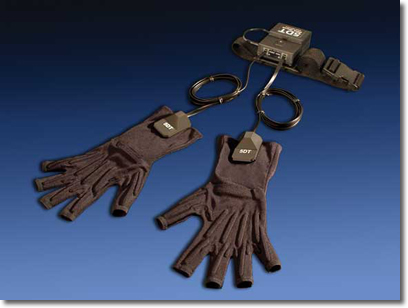

The 5DT Ultra Wireless Kit is a plug-and-play kit for the 5DT Ultra series of data gloves. Each belt-worn wireless kit is designed to transmit the data for 2 gloves simultaneously. This means that a single wireless transceiver and battery pack is used for both gloves, saving both space and power. Up to 4 wireless kits (8 gloves) can be used at the same time.
Wireless Kit
The 5DT Wireless Kit allows you to use 2 gloves wirelessly in one compact package with a range of up to 20m. The wireless kit comes standard with a belt and 2 high-capacity battery packs which each last up to 8 hours with 2 gloves connected.
5DT Ultra Serial Interface KitThe 5DT Serial Interface Kit allows you to use any 5DT Ultra Series glove with a serial port. This is useful for machines that only have serial ports or for embedded devices.
DT Data Glove 14
5DT Data Glove 5
5DT Data Glove 5 Ultra MRI
5DT Data Glove 14 Ultra MRI
